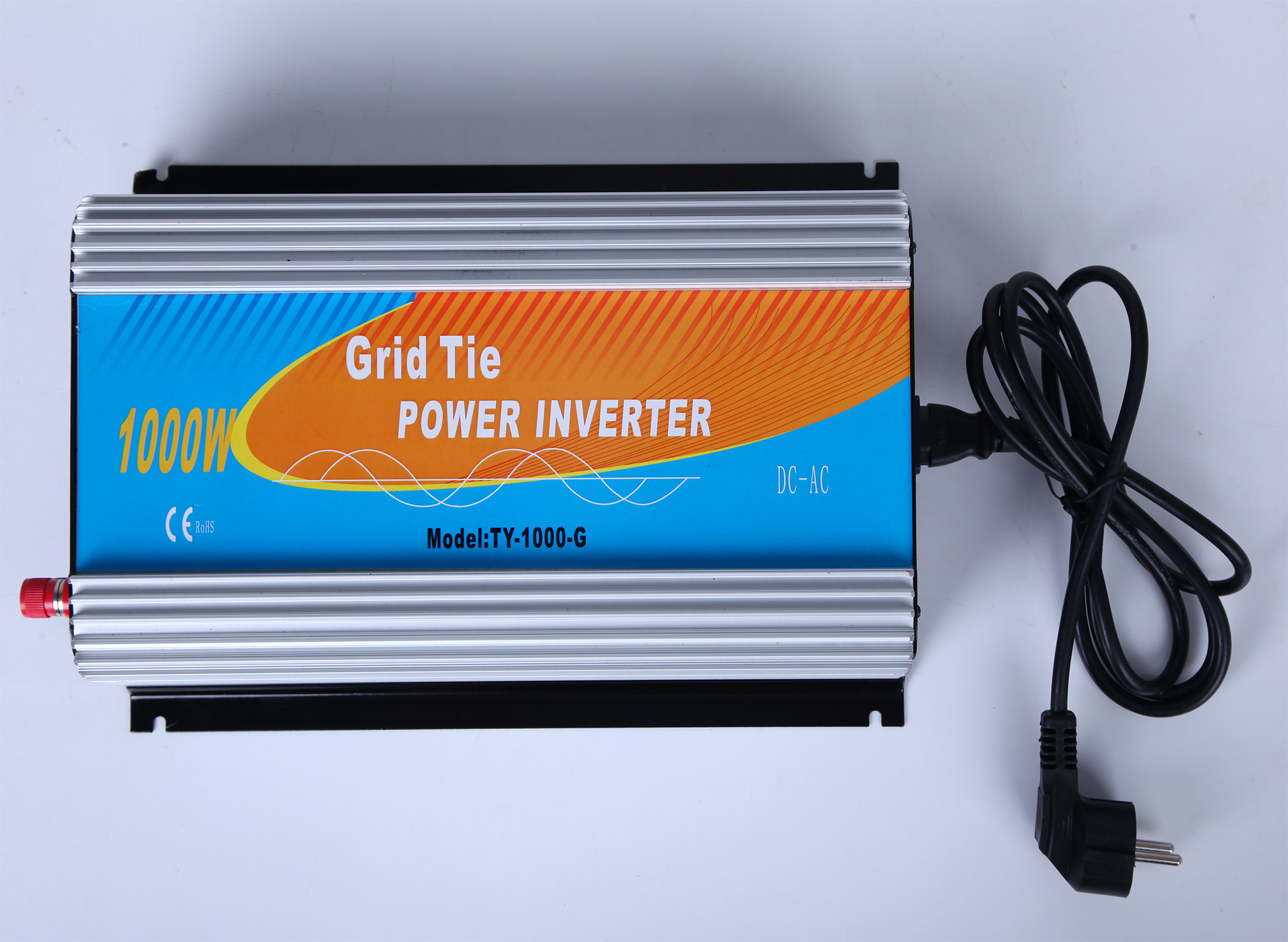

1000W Grid Tie Power Inverter For Solar Panel
The small type solar grid tie power inverter can obtain the solar energy from solar panel, and can tie to the grid through its output cable with no extra equipment. The installation is very convenient and reliable.When the sun shines, the PV panel will produces DC voltage, and the grid tie inverter will change the DC voltage to AC voltage and puts out power to the home grid.
We call the system combining with small solar grid tie power inverter and solar panels as ‘SGPV’. The system includes solar panels and small type grid tie power inverter. Solar panels can be mono silicon, polygon silicon, non-crystal film or any other material that can transform solar energy to electric energy. The power of grid tie inverter should be matched to the power of solar panels connected. So the power of SGPV is defined by its solar panels, it can be standardization according to the actual using.
The inverter can be connected to any outlet at home, when this line run by the conventional electric network. The small grid tie monitors the volume, frequency and phase of the home grid, then produce a pure sine wave that the frequency and phase are as same as the grid's, and the volume is a bit higher than the grid's, then according to the current controlled PWM, to control the output power to the grid. The small grid tie inverter just puts out power when the home grid is on.
|
Model |
TY-1000-G |
| Normal AC Output Power | 900W |
| Maximum AC Output Power | 1000W |
| AC Output Voltage Range | 190V ~ 260V /Switch is at 230V Position |
| 90V ~ 130V /Switch is at 115V Position | |
| AC Output Frequency Range | 46Hz ~ 65Hz |
| Total Harmonic Distortion (THD) | < 5% |
| Power Factor | 0.99 |
| DC Input Voltage Range ( Optional ) | 22V~60V |
| Peak Inverter Efficiency | 92% |
| Standby Power consumption | <1W |
| Output Current Waveform | Pure Sine-wave |
| MPPT Function | Yes |
| Over Current Protection | Yes |
| Over Temperature Protection | Yes |
| Reverse Polarity Protection | Yes |
| Anti-Island Protection | Yes |
| Stackable | Yes |
| Operating Temperature Range | -10 0C ~ 45 0C |
| Inner Box Dimension | 400 * 270 * 140 mm |
| Inner Box Gross weight | 4.5 kg |
| Package | 2 pcs / Carton |
| Carton Dimension | 410 * 280 * 440 mm |
| Carton Gross weight | 9.5 kg |
