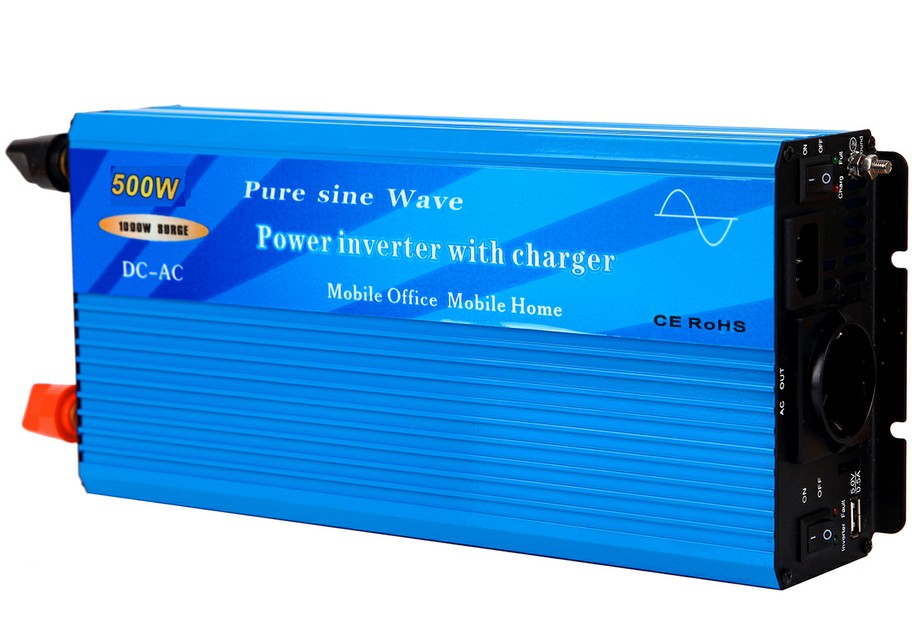

500W Pure Sine Wave Power Inverter with built-in charger and auto transfer switch
Inverter with Charger can provide your equipment with utility-supplied AC power when it is available, and during blackouts and brownouts, the unit will automatically switches over to an external battery source to power connected equipment with voltage and frequency-controlled AC power.;
Inverter with Charger will be a very good back-up power for the Grid, which can automatically transfer the power to battery when the Grid was off or cut.
Product Features
Built-in Charger, Built-in Auto Transfer Switch
External Fuses, Remote Control, USB interface (5V/0.5A).
Protection:Overload, Short Circuit, Reverse Polarity,Over/Under Input Voltage, Over Temperature
CE and RoHS Approved.
Specifications
| Model : TYPC-500 | TYPC-500-12V | TYPC-500-24V | TYPC-500-48V | |
| AC Output | Continuous power: | 500W | ||
| Surge power: | 1000W | |||
| 120%<Load<150% Rated power for 10s | ||||
| 150%<Load<200% Rated power for 2s | ||||
| Output Waveform | Pure Sine Wave (THD < 3%) | |||
| Output Frequency | 50Hz±0.1% or 60Hz±0.1% (Optional) | |||
| AC Output Voltage | 100~120VAC / 200~240VAC (Optional) | |||
| DC Iutput | DC Input Voltage | 12V DC | 24V DC | 48V DC |
| Voltage Range | 10V-15V | 20V-30V | 40V-60V | |
| Low Voltage Alarm | 10.5V± 0.5V | 21V±1V | 42V±2V | |
| Low Voltage Shut down | 10V±0.5V | 20V±1V | 40V±2V | |
| Over Voltage Shut down | 15V±0.5V | 30V±1V | 60V±2V | |
| Charger Spec. | AC Input voltage | AC 100V-120V±10% | ||
| AC 220V-240V±10% | ||||
| DC Charging Voltage | 12V | 24V | 48V | |
| DC Charging Current | 10A | 5A | 3A | |
| Three-stage Charging | Bulk/Absorption/Float charge | |||
| Automatically Switching Time | ≤40ms | |||
| Converting Max. Efficiency | 90% (Full Loading) / 95% (1/3 Loading) | |||
| No Load Consumption | < 0.4A | < 0.2A | < 0.1A | |
| Protection | Over Thermal: | Shut Off Output Automatically, Temperature >75℃ | ||
| Short circuit protection: | Reverse Polarity (External Fuse) | |||
| Cooling Fan automatically run | Temperature ≥45℃ | |||
| Environment | Working temperature | -10℃～+50℃ | ||
| Working humidity | 20%～90% RH Non-Condensing | |||
| Storage Temperature Range | -30℃～+70℃ | |||
| LED Indicator Light | Inverter, Fault | |||
| Packing | Inner Box Dimensions (mm) | 415*195*135 mm | 4pcs /Carton | |
| Inner Box Weight (kg) | 3.7 kg | |||
| Carton Dimensions (mm) | 435*410*315 mm | |||
| Carton Weight (kg) | 15.8 kg | |||
