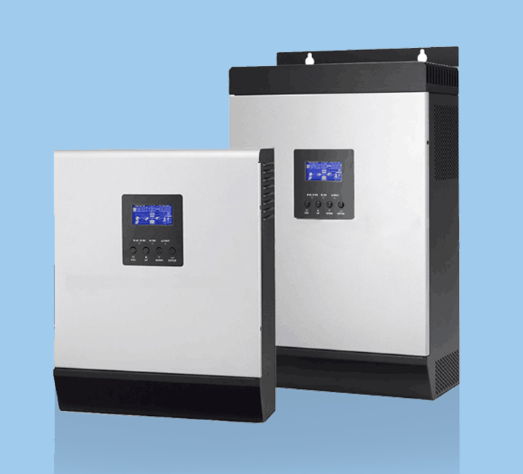

(MPPT) 1000VA-5000VA Hybrid Solar Power Inverter With MPPT and Battery charger

(MPPT) 1000VA-5000VA Hybrid Solar Power Inverter With MPPT and Battery charger This is a multi-functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
1000VA-5000VA Hybrid Solar Power Inverter With MPPT and Battery charger
Model NO. MPPT-1K-24V MPPT-2K24V MPPT-3K-24V MPPT-4K-48V MPPT-5K-48V
Capacity VA 1000VA 2000VA 3000VA  4000VA  5000VA
Capacity W 800W 1600W 2400W 3200W 4000W
  Input voltage 230VAC
selectable voltage range 170-280VAC (for personal computers)                                                                                                                                 90-280VAC (for home appliances)
Frequency range 50Hz/60Hz (auto sensing)
 Output AC voltage regulation (Batt.mode) 230VAC±5%
Surge power  2000VA 4000VA 6000VA 8000VA 10000VA
efficiency (peak) 93%
transfer time 10ms(for personal computers);   20ms (for home appliances)
waveform pure sine wave
Battery                Charger battery voltage 24VDC 48VDC
floating charge voltage 27VD C 54VDC
overcharge protection 31VDC 60VDC
AC charge current  10A/20A 20A/30A  20A/30A/40A/50A/60A
PV input MAX PV array power 600W 3000W
MPPT range@ operating voltage 30VDC-66VDC 60VDC-115VDC
maximum PV array open circuit voltage 75VDC 145VDC
Solar charging current 25A 25A or 60A 80A
maximum efficiency 98%
standby power consumpsion 2W
Package Dimensions(mm) 128*272*355 140*295*479
Net weight (kgs) 7.4 7.6 8 12.5 13.5
Environment humidity 5%-95% relative humidity ( non-condensing)
operating temperature 0℃-55℃
storage temperature -15℃-60℃
• Pure sine wave inverter
• Built-in MPPT solar charge controller and Battery Charger
• Selectable input voltage range for home use
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• Parallel operation with up to 6 units only available for 4000KVA and 5000KVA model
